The Excel Multisensor Measuring Centers employ new technologies to provide high speed and accuracy on reliable and affordable measurement systems.

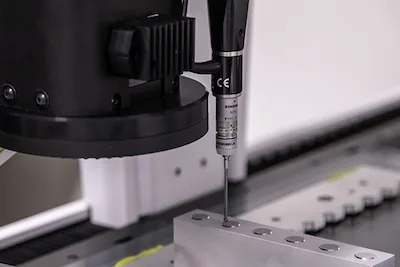

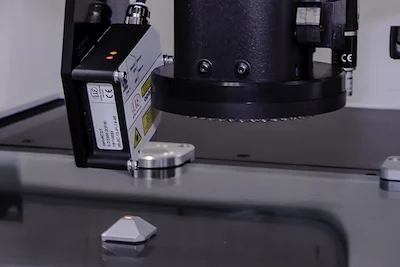

In addition to Vision capabilities, an Excel offers Touch Probe and Laser measurement capabilities. Touch Probe capabilities improve 3D measurement capabilities. Laser capabilities improve speed for scanning and Z height measurements.
With the multisensor capabilities, advanced digital and optic zoom, proprietary edge detection, and InSpec Metrology Software, the Excel Measuring Centers can handle demanding measurement applications.
The gantry style system accommodates large parts and fixtures of multiple parts while maintaining a relatively small footprint. The Excel series of machines measures parts up to 2.5 meters long and up to 100 kg in weight.
Optic Solutions
Features
Digital, High Resolution Video, Color (C series)
Digital, High Resolution Video, B&W (M series)
36:1 Zoom Range, ~15x-540x (U series)
Fast servo drive magnification changes
Instant digital magnification changes
Advanced Illumination
Features
Lighting – Surface, Profile and Axial
Multi-Ring, Multi-Sector Ringlights
Lighting angles from 25 to 90 degrees
Intuitive graphical user interface
Full control to enhance detected edges
Life long LED’s with an approximate 10k hour lifespan
Included custom light calibration interface with InSpec
Non-Linear Calibrations
Features
Maintain machine measurement accuracy
Minimizes factors that cause inaccurate measurements
Ensures highest accuracy standards for stage and optics automated procedures
Excel MicroVu
Automated Precision Measurement
Description
The Excel Multisensor Measuring Centers employ new technologies to provide high speed and accuracy on reliable and affordable measurement systems.
In addition to Vision capabilities, an Excel offers Touch Probe and Laser measurement capabilities. Touch Probe capabilities improve 3D measurement capabilities. Laser capabilities improve speed for scanning and Z height measurements.
With the multisensor capabilities, advanced digital and optic zoom, proprietary edge detection, and InSpec Metrology Software, the Excel Measuring Centers can handle demanding measurement applications.
The gantry style system accommodates large parts and fixtures of multiple parts while maintaining a relatively small footprint. The Excel series of machines measures parts up to 2.5 meters long and up to 100 kg in weight.
Optic Solutions
Features
Advanced Illumination
Features
Non-Linear Calibrations
Features
Additional information
