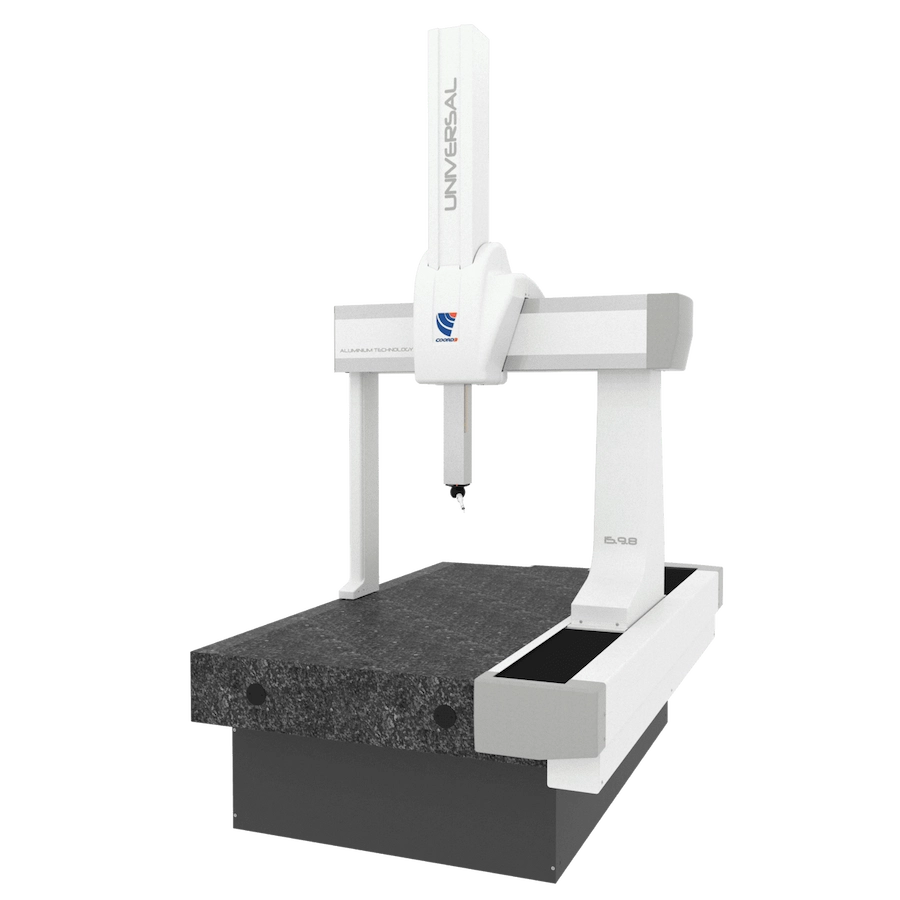

UNIVERSAL
CMM Bridge
The Universal CMM is ideal for both traditional measurements and more advanced scanning cycles.
The Universal family represents the last generation of CMMS.
Ideal for both traditional point-to-point measurements and more advanced scanning cycles using both contact and laser technology.
Advanced scanning, boundless productivity
The exceptional structural rigidity of the UNIVERSAL series makes it particularly suitable for use with 5-axis scanning systems and for measuring gears and gear wheels.
The COORD3 UNIVERSAL series integrates, for the first time in the market, the automatic temperature compensation system with wireless technology. The fully automatic system dynamically corrects errors induced by environmental temperature changes in the 16-26°C temperature range. In addition, the use of high-resolution optical scales (0.1 µm) untethered from the substrate avoids distortions induced by deformation of the main structure.
To enable the installation in production environments of a CMM with high dynamic performance, the UNIVERSAL series can be equipped with the environmental monitoring system.
Features
The features are specially designed to reduce the number of parts, simplify construction, and reduce costs and maintenance time.
- Ultra-rigid mechanical structure for maximum accuracy in scanning
- Highly responsive structure to environmental temperature changes
- CAD FEA-assisted design of the extruded aluminum alloy crossmember to minimize inertial effects at maximum dynamics
- Monolithic granite support surface with integral dovetailed slide rail
Options
- Automatic multi-probe temperature compensation
- Active security system with volumetric scanners
- Active anti-vibration system
- Dryer
- Modular piece equipment system
- Modular protection booth
Models y dimensions
COORD3 UNIVERSAL CMMs are available with the following measuring strokes (Y.Z mm):
7.7/9.8/10.8/10.10/12.10/15.10/15.13
